Details

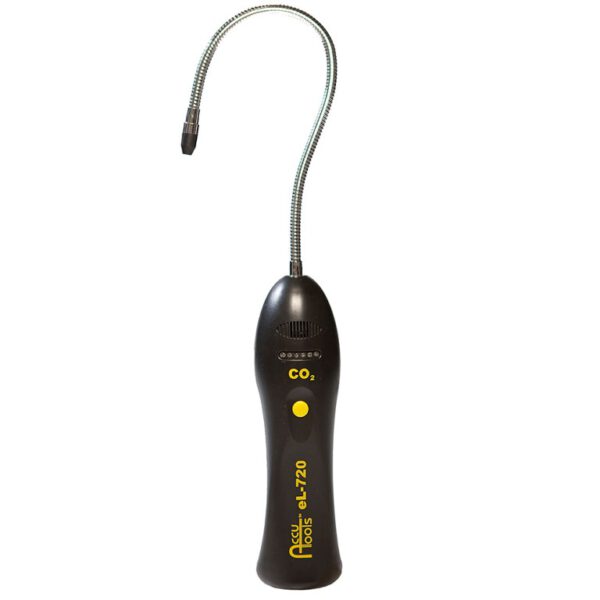

The AccuTools® eL-720 Carbon Dioxide Gas Leak Detector is the most technologically advanced of its kind. The fully automatic eL-720’s low power requirements, small size, and high sensitivity combine to create a tool which is easy to handle and ultra effective at locating even the most difficult-to-find leaks. The infrared sensor will make false alarms a thing of the past when finding even the smallest leaks in R744 systems and CO2 specific applications.Whether servicing commercial refrigeration systems, finding a leak in a restaurant soda machine, or pinpointing a minute leak in a room filled with CO2 at a bulk CO2 manufacturing facility, the eL-720 stands alone when it comes to ease of use, quality of response, and high sensitivity levels with no false alarms.
What’s Included
- eL-720 CO2 Leak Detector
- Sturdy Blow Molded Carrying Case
- Batteries (4 AA Alkaline)
- Instruction Manual
Features
- Lightweight, ergonomic design
- Simple, one button operation.
- Two sensitivity modes, enabling quick and easy location of large and small leaks.
- Sturdy blow-molded carrying case.
- Both visual and audible leak detection signal.
- Long Battery Life – 4 AA batteries provide 20 hours of operation
- Low battery indicator.
- Automatic power-off to conserve battery life.
Applications
- CO2 refrigeration service.
- Carbonated beverage delivery systems.
- Wineries, breweries, and bakeries.
- Bulk CO2 manufacturing, delivery, and service.
- General leak detection (using CO2 as test gas).
- And many more…
Specifications
| Dimensions | 8” x 2.5” x 2.25” (20.3 cm x 6.3 cm x 5.7 cm) |
| Weight | 15 oz. with Batteries (425 grams) |
| Batteries | 4 x 1.5V ‘AA’ Alkaline Batteries (6 VDC) |
| Battery Life | 20 Hours |
| Sensitivity | High: Less than 400 ppm over ambient Low: Less than 4000 ppm over ambient |
| Operating Temperature | 32 – 122°F (0 – 50°C) |
| Warm-up Time | 10 seconds |
| Calibration | Automatic |
| Response Time | 1 second |
| Reset Time | 1 second |
| Probe Length | 12” (30 cm) |
