SKU: 0564 5503 Categories: ,

รหัสสินค้า : 0564 5503

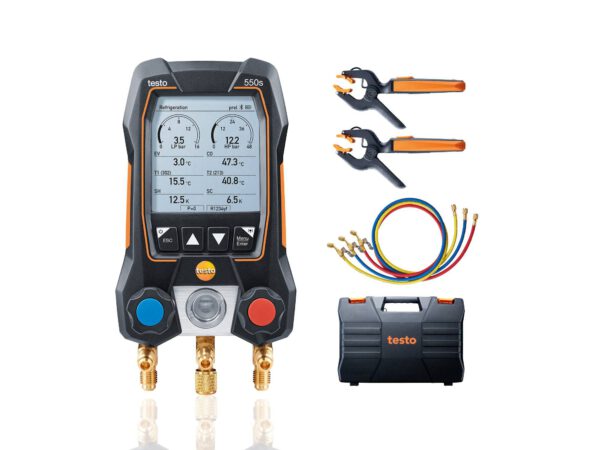

testo 550s Smart Kit with filling hoses – Smart digital manifold with wireless clamp temperature probes and hose filling set with 3 hoses

1. All results at a glance thanks to the large graphic display
2. Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
3. Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more
4. In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), hose filling set with 3 hoses, case

฿19,170.00

Loading...

Details

Product Description

The kit for wireless measurements in the field of commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two testo 115i wireless clamp thermometers (Bluetooth, NTC), a set with 3 filling hoses and a robust transport case. Additional Bluetooth probes, e.g. for wireless, hose-free vacuum measurements with the testo 552i, are available separately.

Products in set

Order-Nr. 0564 5500

testo 550s - Smart digital manifold with Bluetooth and 2-way
valve block

  • All results at a glance thanks to the large graphic display

  • Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class

  • Simple, wireless measurement of vacuum and temperature via automatic Bluetooth® connection

  • Even greater flexibility for your measurements and documentation with the testo Smart App

Order-Nr.  0560 2115 02

testo 115i - Clamp thermometer operated via smartphone

  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
  • Fast identification of temperature changes by graphic progression display
  • Measurement data analyzed and sent via testo Smart Probes App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

Order-Nr.  0501 5001

testo Smart App

  • All in one: One app for all Bluetooth®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps

  • Quick and easy: Measurement menus for numerous applications provide optimum support in configuring and carrying out measurements, e.g. superheating/subcooling

  • Clear graphical presentation of readings, e.g. as a table, for quick interpretation of results

  • Create digital measurement reports including photos as PDF/CSV files on site and send via e-mail

Document

Download

Technical Data

Temperature

Measuring range

-50 to +150 °C

Accuracy

±0.5 °C

Resolution

0.1 °C

Probe connection

2 x plug-in (NTC)

Pressure measurement

Measuring range

-1 to 60 bar

Accuracy

±0.5 % fs

Resolution

0.01 bar

Probe connection

3 x 7/16" – UNF

Overload rel. (high pressure)

65 bar

General technical data

Weight

826 g

Dimensions

210 x 121 x 60 mm (LxWxH)

Operating temperature

-20 to +50 °C

Protection class

IP54

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

Black

Auto-off

10 min*

Battery type

4 x type AA batteries

Battery life

250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®

Data transfer

Bluetooth®

Radio range

150 m

Refrigerants in instrument

R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)

Refrigerants update via App

R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

Storage temperature

-20 to +60 °C

* when not connected via Bluetooth

Temperature - NTC

Measuring range

-40 to +150 °C

Accuracy

±1.3 °C (-20 to +85 °C)

Resolution

0.1 °C

General technical data

Weight

127.4 g

Dimensions

183 x 90 x 30 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 AAA micro batteries

Battery life

150 h

Data transfer

Bluetooth®

Radio range

100 m

Storage temperature

-20 to +60 °C
