SKU: 0564-2550 Categories: ,

รหัสสินค้า : 0564-2550

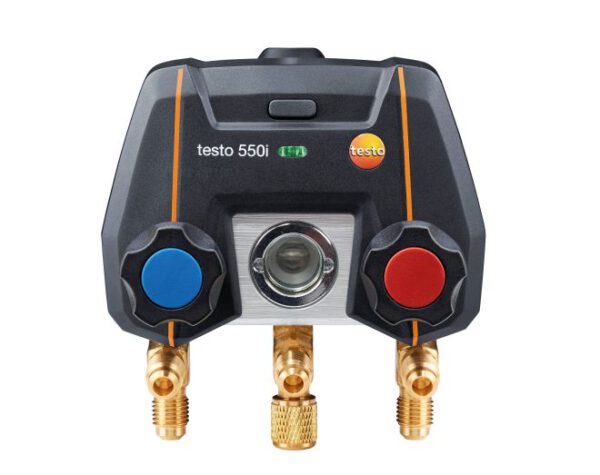

testo 550i – App-controlled digital manifold with Bluetooth and 2-way valve block

1. All activities, from measurement through to documentation, using the testo Smart App on your Smartphone
2. The smallest digital manifold on the market
3. Maximum reliability thanks to the extremely robust housing with IP54 protection class
4. Optionally expandable with testo Smart Probes for temperature, humidity and vacuum

฿12,450.00

Loading...

Details

Product Description

From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet – for flexible, fast measurements and digital documentation.



testo 550i – App-controlled digital manifold with Bluetooth and 2-way valve block

  • For carrying out exceptionally fast, easy measurements on refrigeration and air conditioning systems and heat pumps
  • testo Smart App: Control your servicing and maintenance tasks completely via app and smartphone or tablet, enjoy clearly presented results and digital documentation, set your own favourites, and always have the latest refrigerants
  • Maximum reliability and convenient handling in environments that are difficult to access thanks to an exceptionally compact, extremely robust housing with IP54 protection class
  • Maximum flexibility for working wirelessly: Bluetooth probes for temperature, pressure and humidity automatically connect to the measuring instrument via the testo Smart App
  • Continuously high performance in all conditions: You can depend on this manifold from Testo – it combines proven Testo quality with excellent robustness

Delivery Scope

testo 550i digital 2-way manifold including batteries (3 x AAA), calibration protocol and instruction manual.

Testo has put together the practical testo 550i Smart Kit for you – so you’ll be optimally equipped to tackle your measuring tasks right away.

Document

Download

Technical Data

Pressure measurement

Measuring range

-1 to 60 bar

Accuracy

±0.5 % fs

Resolution

0.01 bar

Probe connection

3 x 7/16″ – UNF

Overload rel. (high pressure)

65 bar

General technical data

Weight

595 g

Dimensions

77 x 109 x 63 mm

Operating temperature

-10 to +50 °C

Protection class

IP54

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

Black

Auto-off

10 min*

Battery type

3 AAA micro batteries

Battery life

130 h

Data transfer

Bluetooth®

Radio range

150 m

Refrigerants in instrument

R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)

Refrigerants update via App

R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

Storage temperature

-20 to +60 °C

* when not connected via Bluetooth
