รหัสสินค้า : 0563-3163

testo 316-3 – Refrigerant leak detector

1. Can detect all the most common cooling agents: CFCs, HFCs, FCs
2. Highly sensitive – detects even the smallest leaks
3. Easy-to-use one-button operation
4. Complies with specifications for F gases regulations, SAE Code J1627 and DIN EN 14624:2012 standard

฿11,190.00

Loading...

Details

Product Description

The testo 316-3 refrigerant leak detector is one piece of kit that you as a refrigerant technician just won’t want to be without. The handheld leak detector can detect all the most common cooling agents. And the smallest leaks. Comes with an automatic zero setting that also enables you to locate leaks in contaminated rooms.

testo 316-3 leak detector – benefits at a glance

  • Can detect all common cooling agents: CFCs, HFCs, FCs
  • Highly sensitive ( < 4 g/a – 1g/a according to DIN EN14624:2012 standard) – can detect even the smallest leaks
  • Ready for use – there’s no need to select cooling agent characteristics first
  • Automatic zero setting – can detect leaks in rooms that are already contaminated
  • Visual and audible alarm which are activated when a leak is detected
  • Quick and easy sensor change
  • Complies with specifications for F gases regulations, SAE norm J1627 and DIN EN 14624:2012 standard

 What’s included

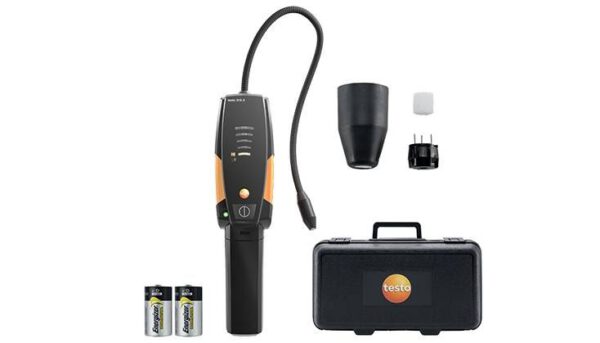

testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.

Delivery Scope

testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.

Technical Data

General technical data

Operating humidity

20 to 80 %RH

Weight

500 g (incl. batteries)

Dimensions

270 x 60 x 61 mm

Operating temperature

-18 to +50 °C

Product colour

Black

Detectable

R22; R134a; R404A; R410A; R507; R438A; and all CFCs, HFCs, and HCFCs

Life-time sensor

Approx. 80 to 100 h (corresponds to approx. 1 year)

Sensitivity

4 g/a (0.15 oz/a)

Standards

EN 14624:2012; SAE J1627

EU-/EG-guidelines

2004/108/EG

Battery type

2 x D

Battery life

16h permanent operation

Storage temperature

0 to +50 °C
